Target Blu Eye 2 LCD Display

The emergency services use Tetra radio systems. As soon as the radio in an emergency vehicle is switched on, it periodically transmits ultra-short pulses to the antenna masts in the network. These pulses are detected by Target Blu Eye and converted into a warning signal.

In this way, Target Blu Eye makes an important contribution to your safety, the safety of the emergency services and the safety of your fellow road users.

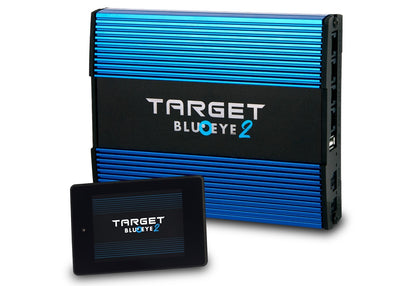

BLU EYE 2 COMES WITH:

• Quick start instructions

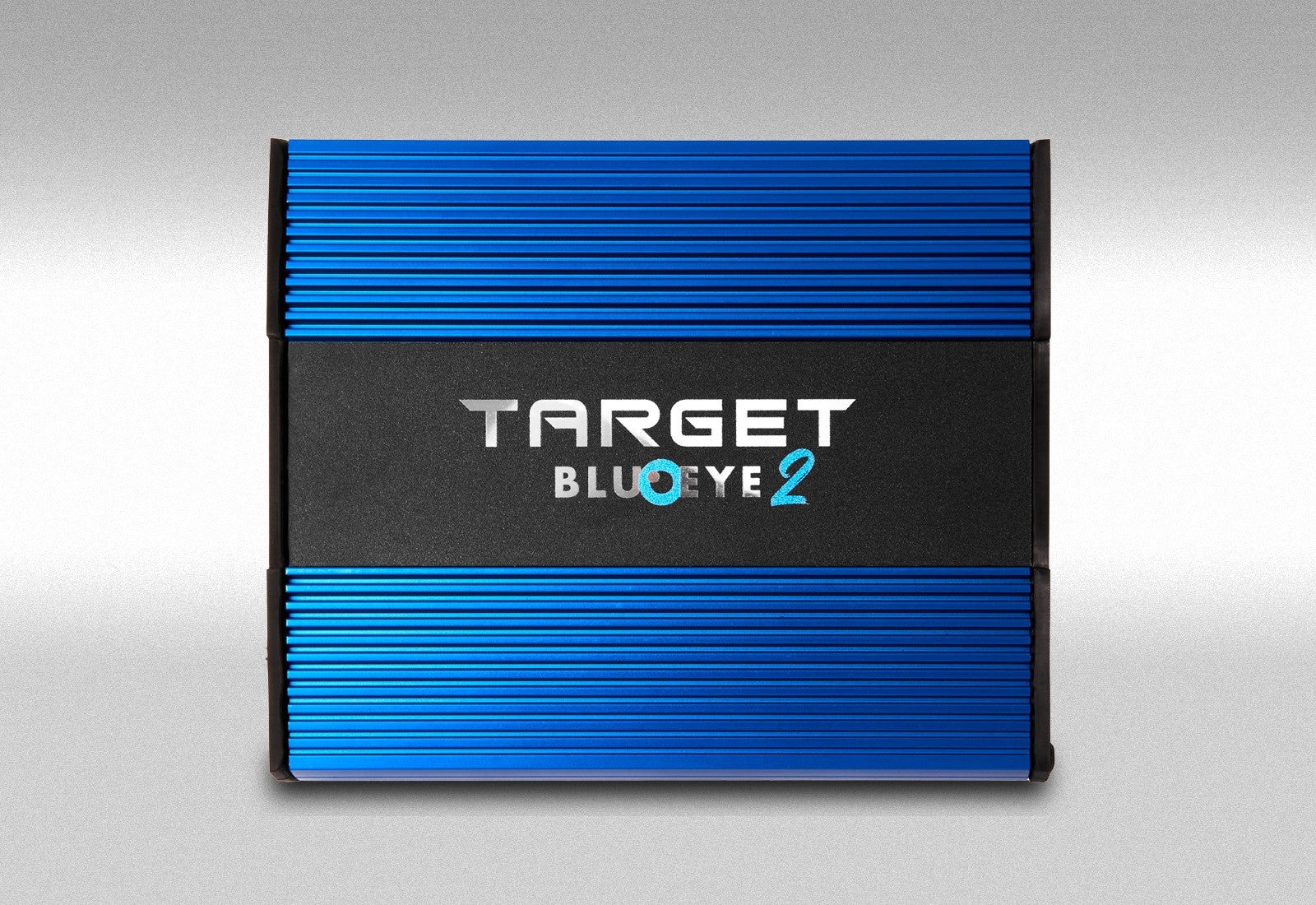

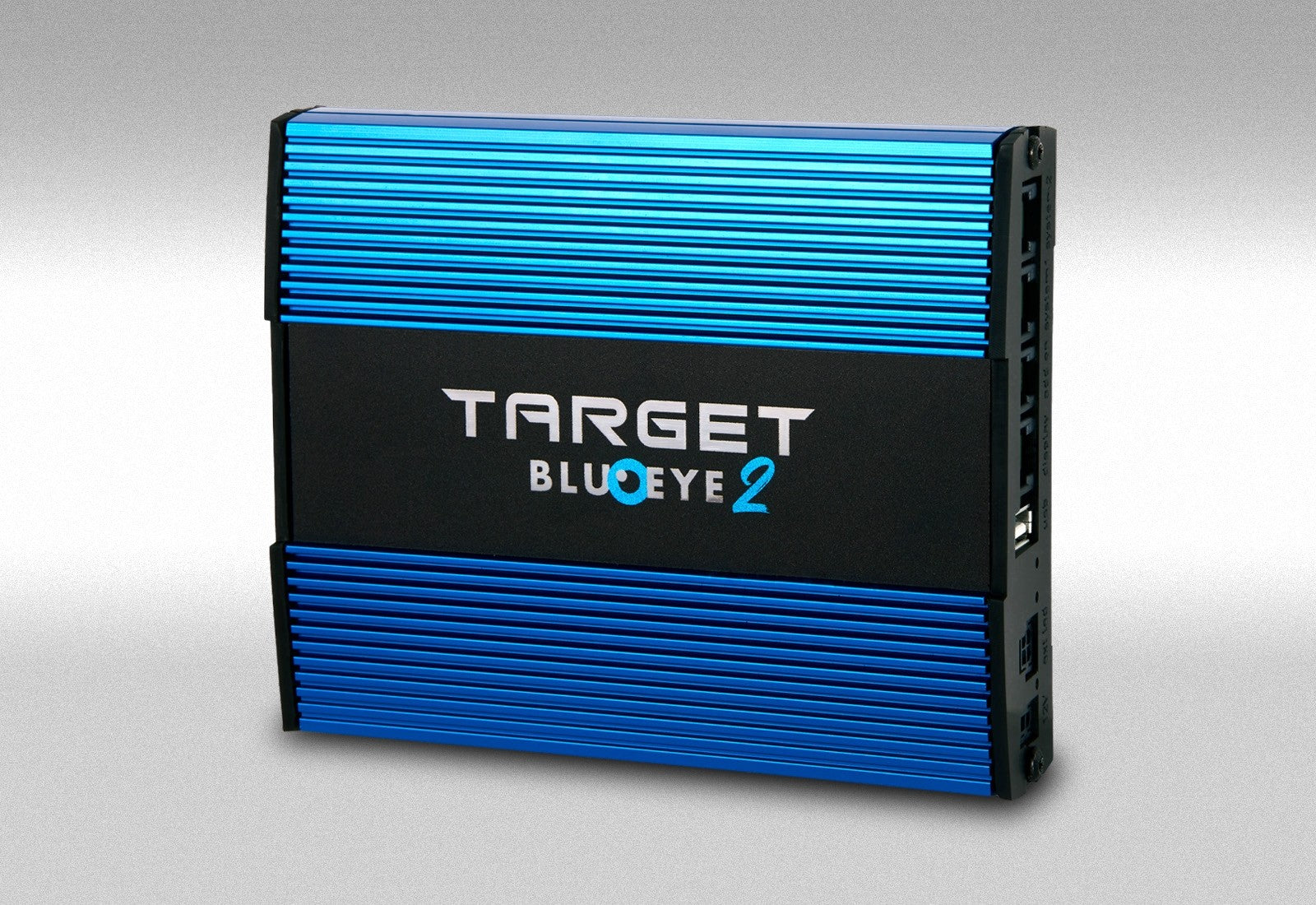

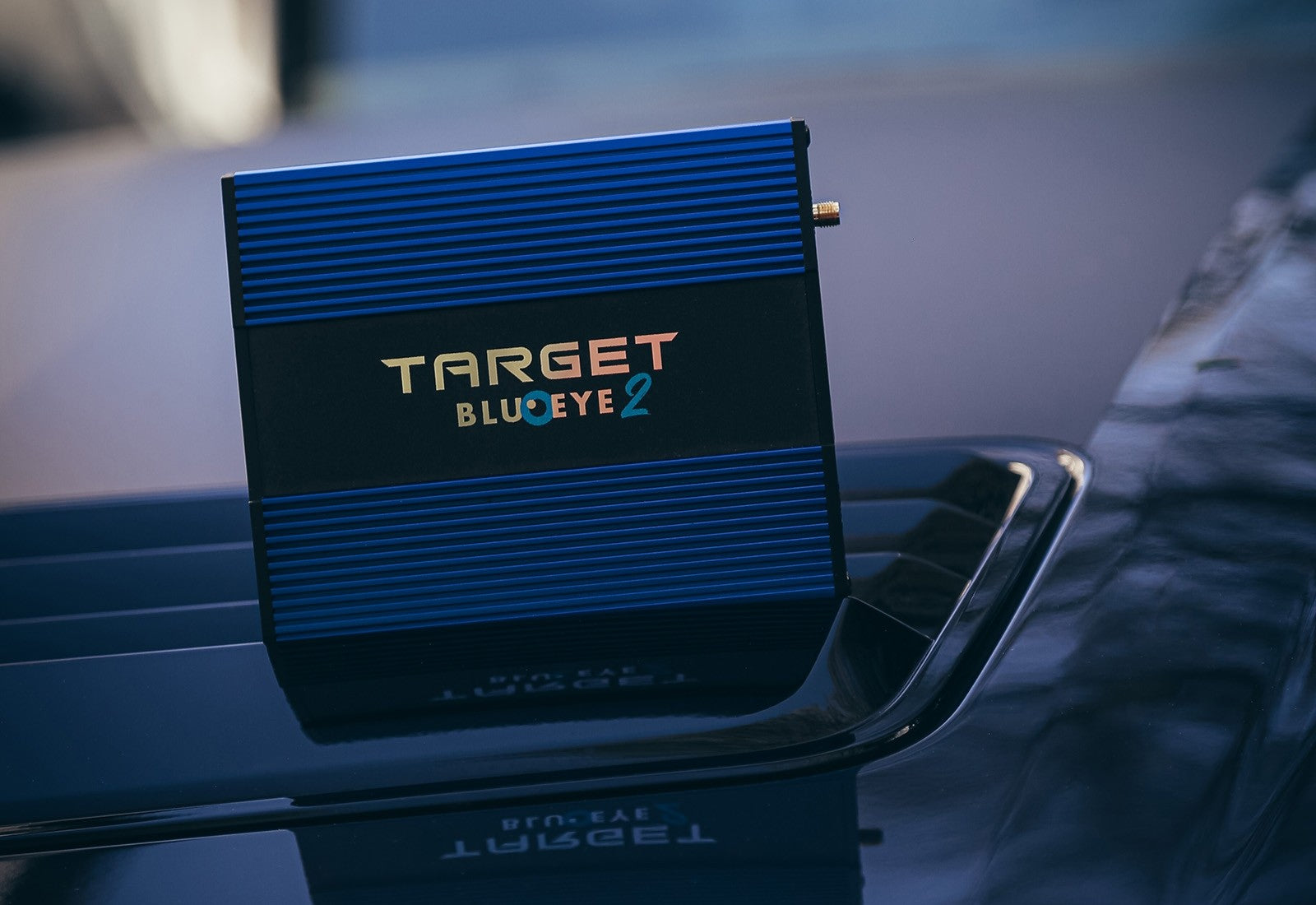

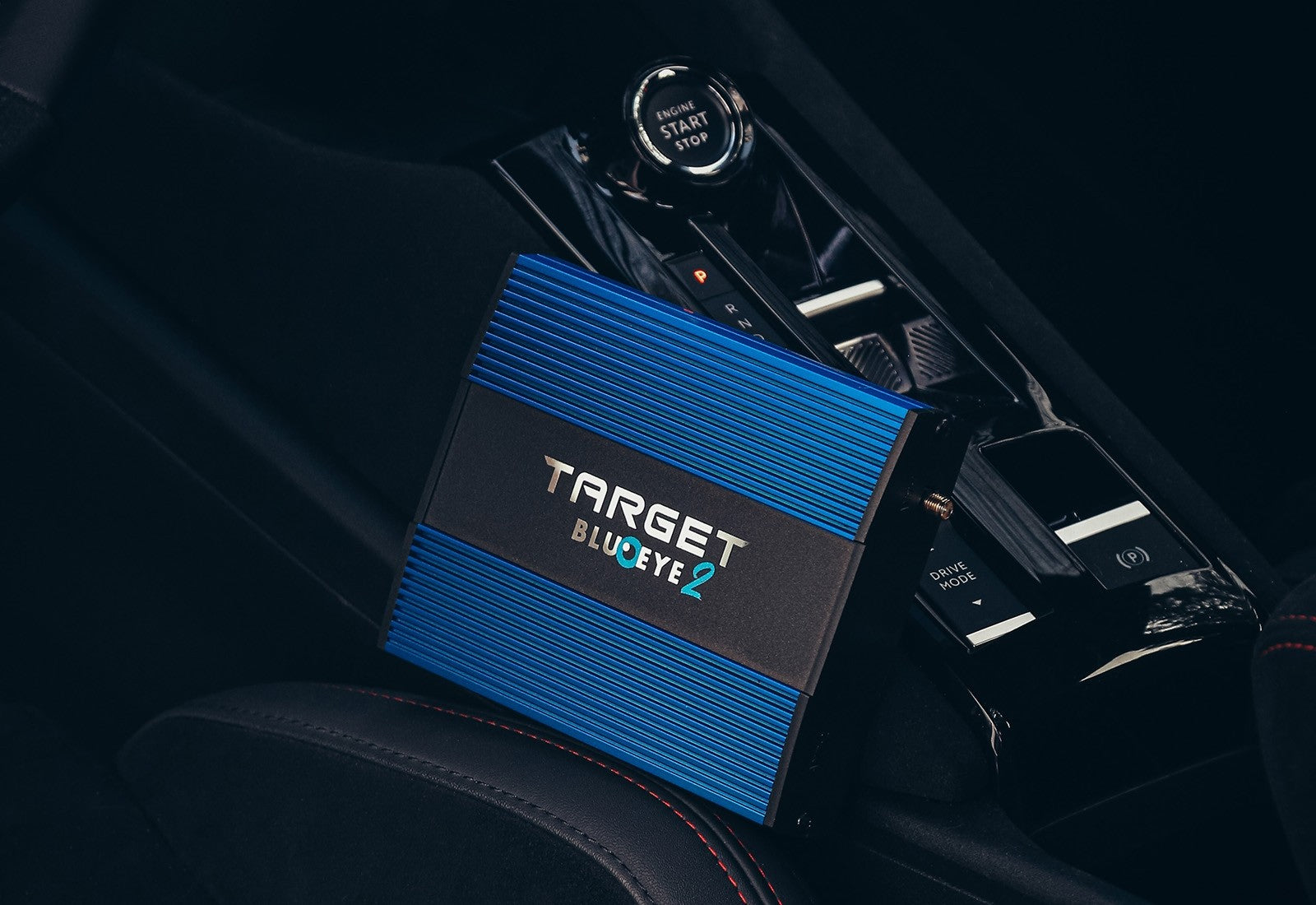

• Target Blu Eye 2 receiver
• LCD display
• VCD dipole antenna for invisible mounting behind the front or rear bumper
• Connection cable between receiver and display
• Power cable with fuse
• USB drive

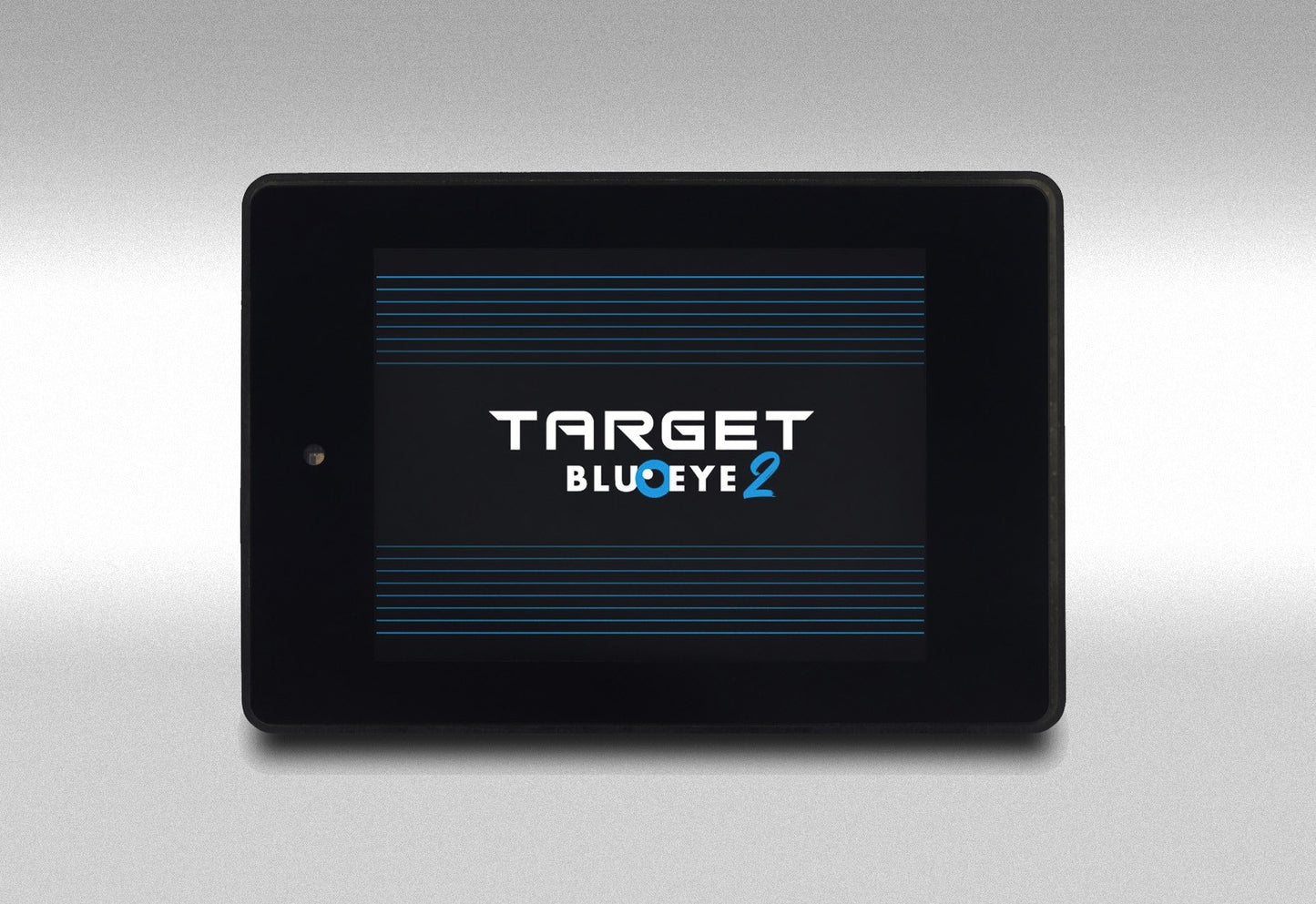

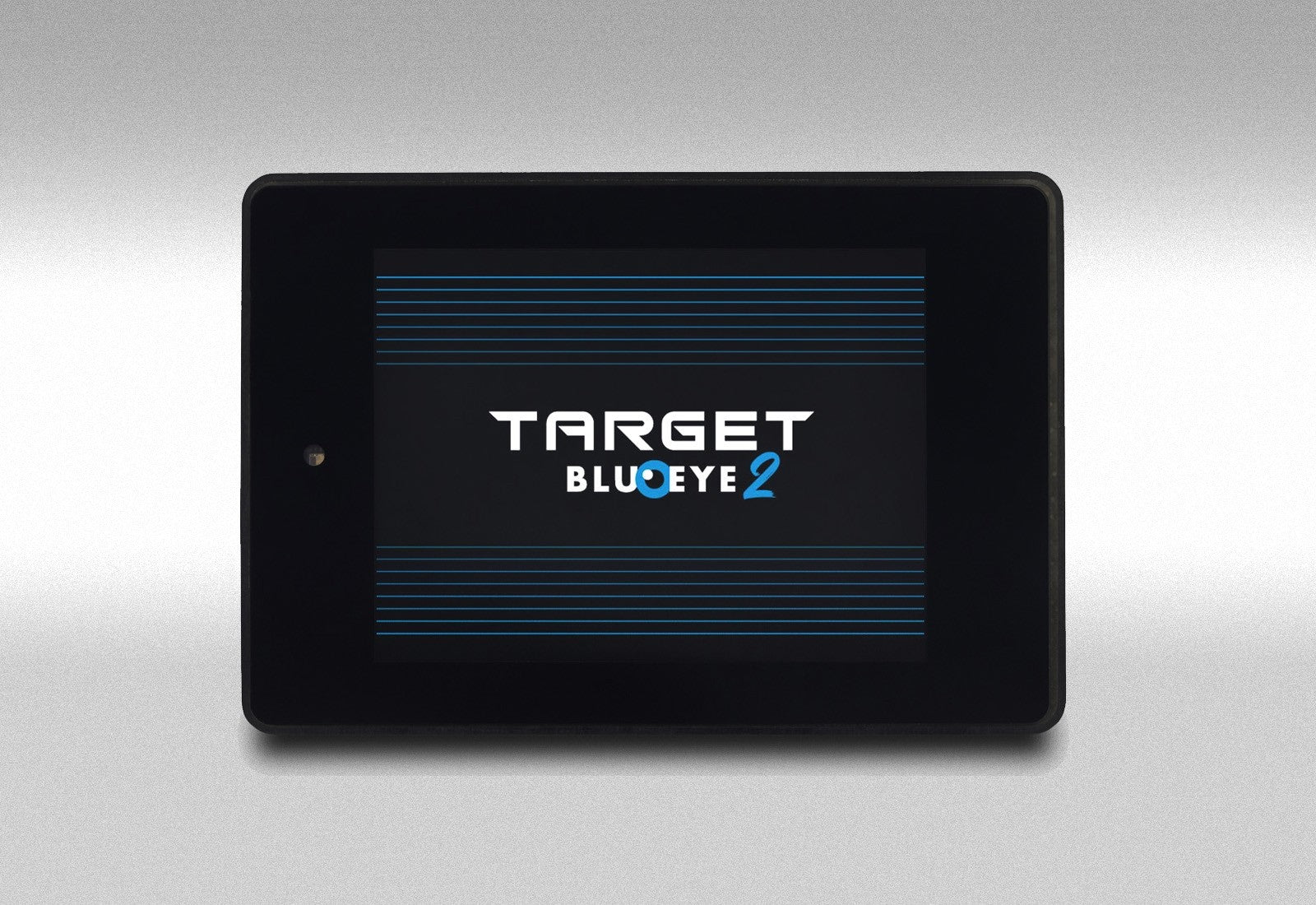

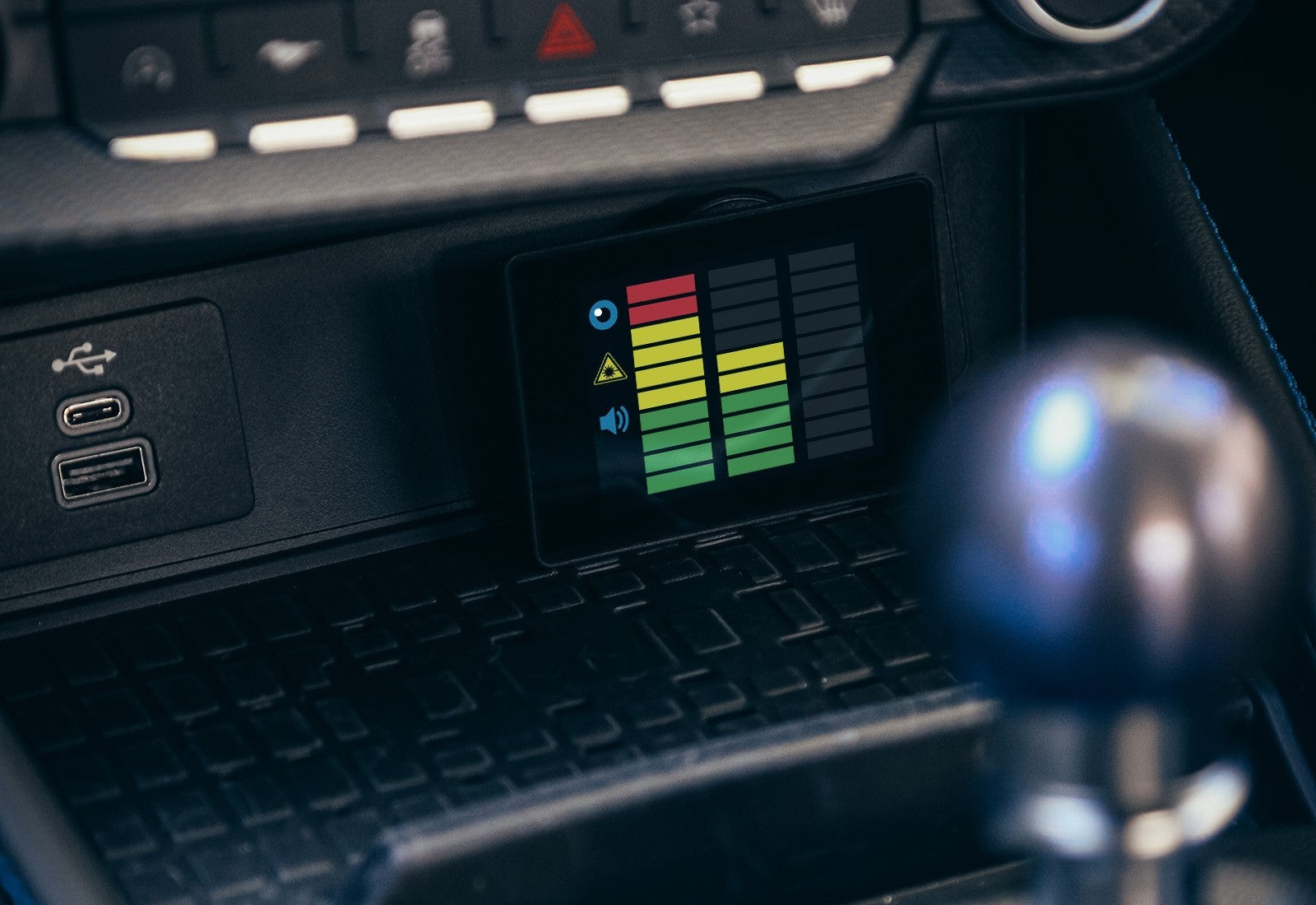

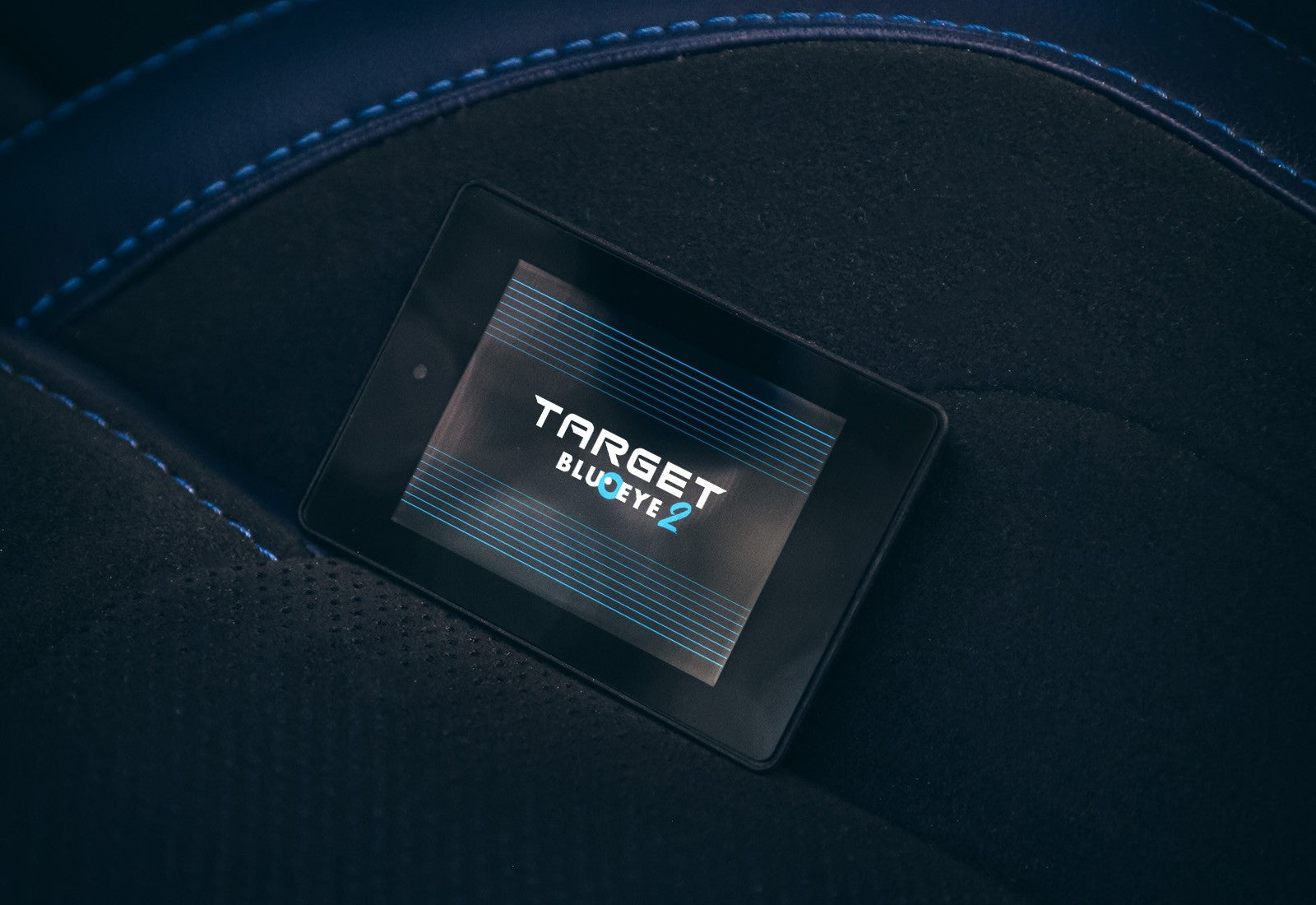

The LCD display is compact and can be neatly concealed in the dashboard or placed in a discreet location of your choice. With Target Blu Eye, you will always be warned well in advance of approaching emergency services, including ambulances, fire engines, police and unmarked surveillance vehicles. Even when they are travelling at high speed and without flashing lights or sirens.

TECHNICAL SPECIFICATIONS

• Power supply: 10 - 16V.
• Power consumption: maximum 550mA.
• Fuse: 3A.
• Frequency range: 380 – 430MHz.
• TETRA detection by means of waveform recognition, no decoding.
• Temperature range: -20°C - +50°C.
• Receiver dimensions: 137 x 114 x 32mm. (LxWxH)
• Receiver weight: 475 grams
• LED display dimensions: 54 x 18 x 5.6 mm. (LxWxH)
• LCD display dimensions without cable guide: 74 x 51 x 10 mm. (LxWxH)
• LCD display weight: 37 grams
• Antenna dimensions: total length of antenna elements: 345 mm.

ANTENNAS

The supplied VCD dipole antenna is suitable for most common situations and ensures good reception. If the VCD dipole antenna cannot be used or maximum reception is desired, we offer the following alternatives:

• Modification of the existing Sharkfin antenna: modification of the sharkfin antenna is possible for almost all car brands. This modification can only be carried out by Track Technologies technicians. Performance: better than the VCD dipole antenna.
• Plate antenna (18 cm long) with right-angled mounting base. Suitable for mounting on the roof or rear spoiler. Performance: better than the VCD dipole antenna.
