Wagner Tuning Intercooler kit BMW M2 F87 Competition S55

Intercooler BMW M2 F87 Competition S55 Wagner Competition kit

The 3.0-litre S55B30 turbo engine of the BMW M2 Competition / M3 / M4 models is equipped with an indirect charge-air cooling circuit. Charge air cooling is therefore achieved by a water-cooled charge air cooler, which is replaced by the WagnerTuning high-performance charge air cooler.

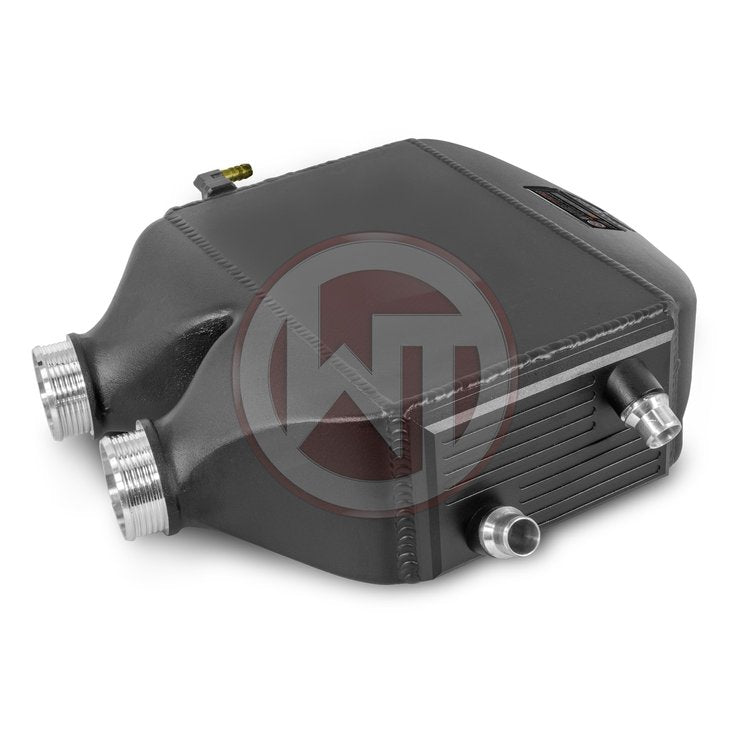

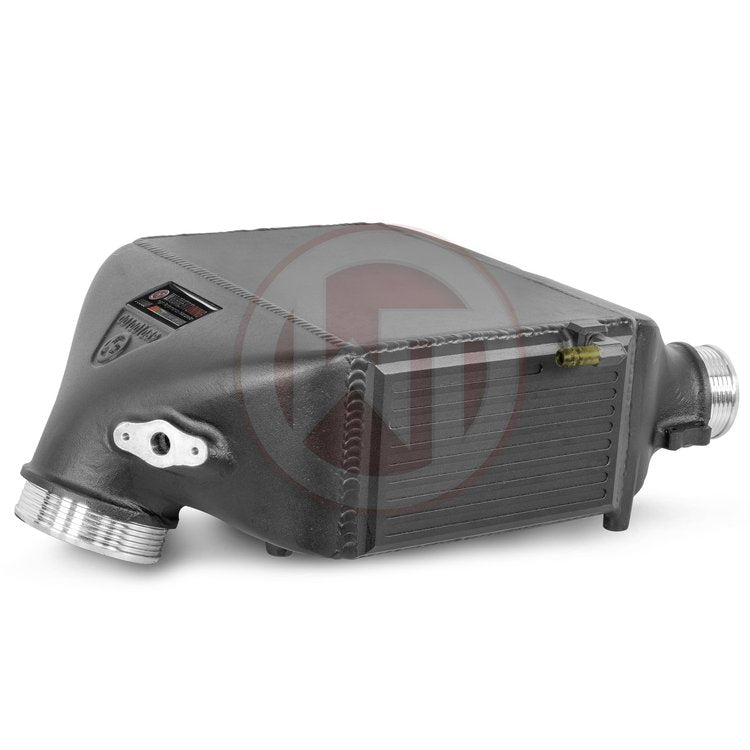

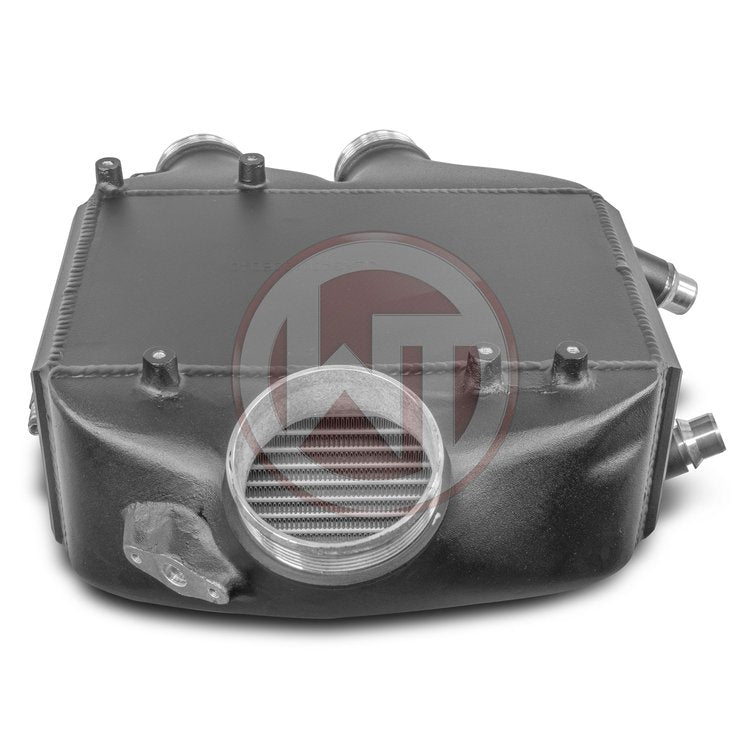

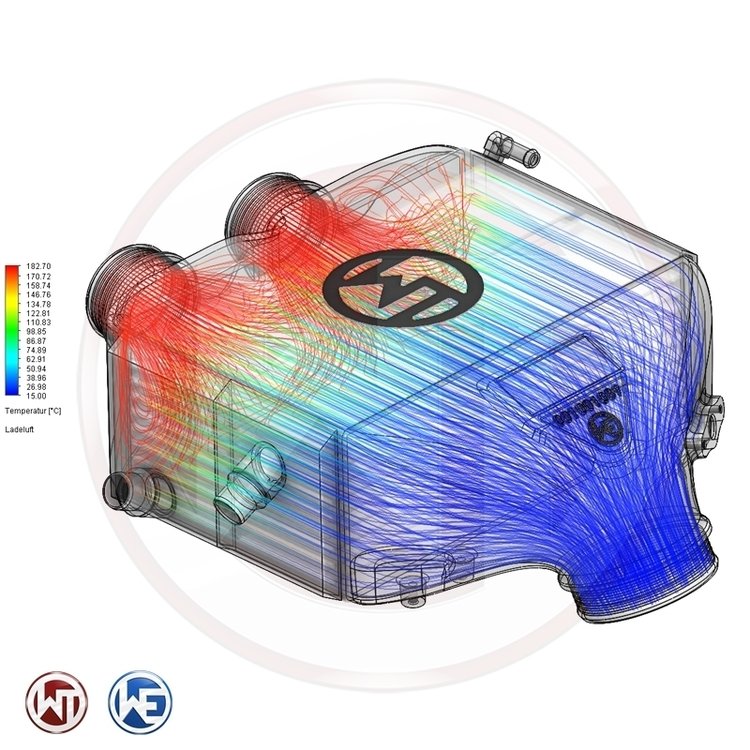

The WAGNERTUNING high-performance charge air cooler has a new type of competition net (tube fin) with dimensions of 287 mm x 185 mm x 115 mm. It was specially developed for the high demands of the BMW M3/M4 and offers 114 % more external net volume compared to the original intercooler. The ratio of internal to external cooling surface area generates maximum heat transfer while allowing optimal internal airflow. The cast aluminium end housings were designed in CAD and optimised using CFD simulations. The result is excellent cooling properties with minimal back pressure. This kit is therefore also suitable for racing. Optimal cooling of the charged air with a clear performance boost!

All WAGNERTUNING charge air coolers have a heat-conducting anti-corrosion coating, ensuring durable cooling. Mounting the M2 Competition requires a small modification under the bonnet.

Advantages of this product:
- significantly better cooling performance
- less back pressure
- more power and torque for your engine
- mechanical relief of the turbocharger
- 100% pressure resistance
- 100% plug and play
- up to 4 years warranty

Main dimensions OEM intercooler:
276 mm x 136 mm x 76 mm
V = 2.85 litres

WT charge air cooler dimensions:
287 mm x 185 mm x 115 mm
V = 6.10 litres
